Cyx-19 1.5mA 5VDC Silicon Oil Filled Piezoresistive Pressure Sensor
  • Summary
The Piezoresistive pressure sensor imported high precision, high stability force sensitive chips, adopted advanced technology, military industry production conditions and equipment manufacturing delicately. Widely used in petroleum, chemical, metallurgy, electric power, aviation, medical equipment.
  • Standard Range
(Power Supply: 1.5mA or 5VDC)
RangeOverload PressureFull Scale Output(mV)Typical Value(mV)Pressure Form
0~10 kPa300%35~6045G/D
0~20 kPa300%70~11090G/D
0~35 kPa300%55~8070G/A/D
0~70 kPa300%55~8060G/A/D
0~100 kPa300%60~8575G/A/D
0~200 kPa300%65~8575G/A/D
0~400 kPa300%60~8070G/A/D
0~600 kPa200%90~120100G/A/D
0~1.6 MPa200%80~120100G/A/D
0~1.0 MPa200%125~185150G/A/D
0~2.0 MPa200%50~7060G/A/D
0~3.5 MPa200%100~120110G/A/D
0~7.0 MPa200%120~150135A
0~10 MPa200%180~230200A
0~25 MPa150%140~170150A
0~40 MPa150%230~280250A
0~60 MPa150%100~160130S
0~100 MPa150%100~150120S
Notes: G stands for gauge pressure; A stands for absolute pressure; D stands for differential pressure; And S stands for sealed gauge.
  • Technical Parameters
Range-100kPa~100MPa
ParametersTypical ValueMaximum ValueUnit
Zero Output±1±2MV
Nonlinearity0.20.5%FS
Hysteresis0.050.1%FS
Repeatability0.050.1%FS
Input/ Output Impedance2.63.8
Zero Temperature Drift*±0.15±0.8%FS, @25ºC
Sensitivity Temperature Drift*±0.2±0.7%FS, @25ºC
Long-term Stability0.1%FS/year
Excitation Current1.5(Max input voltage is 10VDC)MA
Insulation Resistance500(500VDC)
Compensation Temperature0~50; -10~80ºC
Operating Temperature-40~+85ºC
Storage Temperature-40~+125ºC
Response Time≤1Ms
Shell & Diaphragm Material316L Stainless Steel
Measuring MediumThe fluid which is compatible with 316L, viton, nitrile rubber
Vibration(20~500Hz)20G
Useful Time(25ºC)>1*108Pressure Circulation(80%FS)Times
Packing MediumSilicon Oil
Weight36G
O RingΦ16*1.8mm(nitrile rubber or viton)
*The typical value of 0~10kPa and 0~20kPa's zero temperature drift and sensitivity temperature drift is 0.4%FS@25ºC, max value is 1.6%FS@25ºC.
  • Trait
  1. The accuracy can reach 0.1%.
  2. Full span output is 100mV(typical value).
  3. Imported high stable chips.
  4. Long-term stability reach 0.1%FS/year.
  5. Cost effective.
  • Structure



  • Cyx-19 1.5mA 5VDC Silicon Oil Filled Piezoresistive Pressure Sensor
  • Connection
Red wire -- positive vdd black wire -- ground
Yellow wire -- positive output blue wire -- negative output
Cyx-19 1.5mA 5VDC Silicon Oil Filled Piezoresistive Pressure Sensor
  • Selection


Cyx-19 1.5mA 5VDC Silicon Oil Filled Piezoresistive Pressure Sensor


Company Information

Tianshui Huatian Sensor Co., Ltd. is a new high-tech enterprise which combined R&D, production, sales with engineering service. It is one of the enterprises which engaged in the integrated pressure sensors and transducers in China. We have passed GB/T 19001-2008 quality management system certification in November 2009.

The Main Products:

CYX series pressure sensors, CYB series pressure transmitter, CYBD series intelligent measurement instrument, CYBK series electronic pressure switches and CW series temperature transmitters.

At present, the company has a number of patents with independent intellectual property rights for the integrated pressure sensors and transducers, which are widely used in industrial automation fields such as coal, oil, electric power, metallurgy, light industries and etc.

The First-Class Equipment:

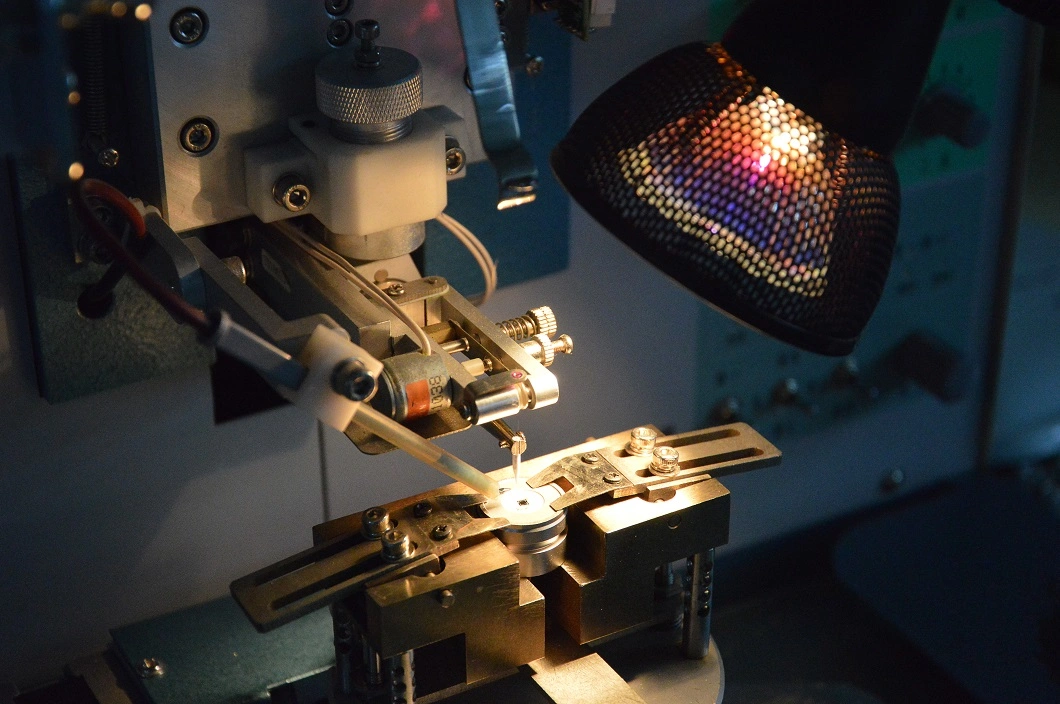

Laser Trimming Machine; Gold Wire Ball Welding Machine; Shaped Cap Sealing Machine; Laser Welding Machine; High Vacuum Oiling Machine; Precision High Low Temperature Test Box; High Precision Automatic Temperature Compensation System and Automatic Test System and Other Hardware Facilities.
